WIRING DIAGRAMS

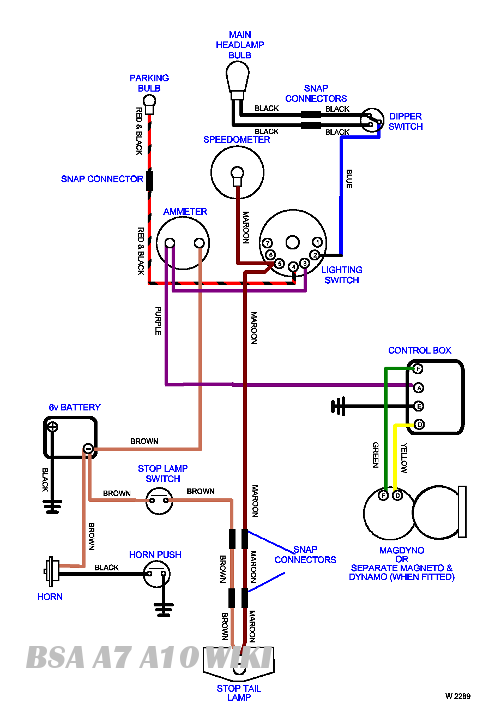

POSITIVE EARTH (A10 G.F. Plunger model)

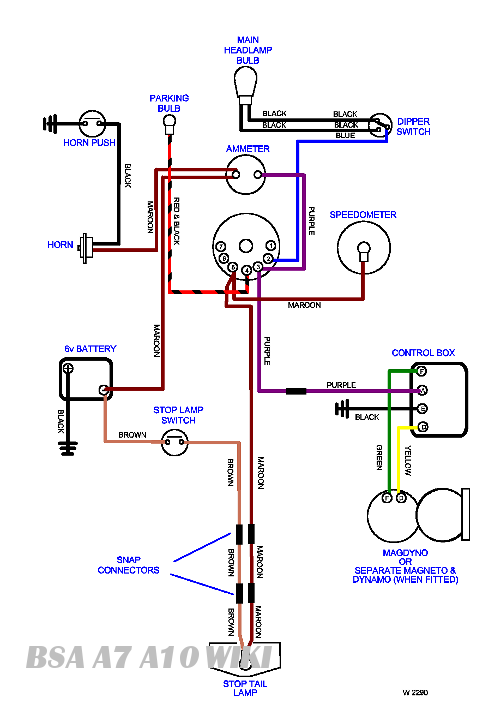

POSITIVE EARTH (A7, A7 Shooting Star and A10 G.F, Swinging Arm model)






POSITIVE EARTH (A10 Road Rocket)
